化德县巨力钢丝绳批发价供应,公司主要产品系列包括:吊装带(合成纤维吊装带、柔性吊装带、扁平吊装带)、钢丝绳索具、冶金夹具、索具配件、安全防护。销售电话:0311-66697169 欢迎您前来选购。
化德县巨力钢丝绳现货供应
化德县巨力钢丝绳哪里有卖
化德县巨力钢丝绳厂家直销
化德县巨力钢丝绳价格是多少

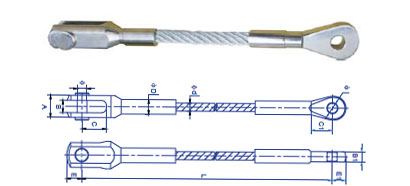

产品参数
产品型号 | 钢丝绳直径d (mm) | A (mm) | B (mm) | B1 (mm) | C (mm) | C1 (mm) | D (mm) | E (mm) | E1 (mm) | 孔径Φ (mm) |
OUGS06 | 6 | 24 | 12 | 10 | 25 | 25 | 12 | 17 | 14 | 12 |
OUGS09 | 9 | 28 | 14 | 12 | 29 | 28 | 18 | 21 | 19 | 14 |
OUGS11 | 11 | 30 | 16 | 14 | 32 | 33 | 20 | 23 | 22 | 16 |
OUGS13 | 13 | 38 | 20 | 16 | 40 | 38 | 22 | 28.5 | 28 | 20 |
OUGS14 | 14 | 42 | 22 | 18 | 45 | 42 | 26 | 30.5 | 30 | 22 |
OUGS16 | 16 | 46 | 24 | 20 | 50 | 46 | 28 | 34 | 33 | 24 |
OUGS18 | 18 | 52 | 28 | 24 | 55 | 50 | 32 | 38 | 35 | 25 |
OUGS20 | 20 | 58 | 30 | 26 | 61 | 50 | 36 | 39.5 | 38 | 26 |
OUGS22 | 22 | 62 | 34 | 28 | 68 | 55 | 40 | 45.5 | 43 | 30 |
OUGS24 | 24 | 68 | 38 | 30 | 75 | 60 | 44 | 51 | 48 | 33 |
OUGS26 | 26 | 72 | 40 | 33 | 80 | 60 | 44 | 54 | 51 | 36 |
OUGS28 | 28 | 78 | 42 | 36 | 82 | 65 | 48 | 57 | 54 | 38 |
OUGS30 | 30 | 86 | 46 | 40 | 90 | 70 | 52 | 60.5 | 56 | 40 |
OUGS32 | 32 | 94 | 50 | 42 | 98 | 75 | 56 | 66.2 | 61 | 44 |
OUGS34 | 34 | 98 | 52 | 45 | 102 | 80 | 60 | 68.5 | 64 | 46 |
OUGS36 | 36 | 104 | 54 | 48 | 106 | 90 | 64 | 71 | 68 | 49 |
